How to Replace Your iPhone 6 Broken Screen in Three Minutes

Please note:

You could buy the iPhone 6 replacement parts at http://www.etradesupply.com/apple/iphone/apple-iphone-6.html

All orders over $50 will can use this coupon code ETSGFR5Z(valid until 10th Feb) for a special discount.

Before the release of iPhone 6, all rumors predicted that Apple would adopt the Sapphire Glass instead of the Corning Gorilla Glass to make it stronger and more solid than ever. However, for some reasons, the screen glass of iPhone 6 and 6 plus is still made from Corning Gorilla Glass. For most people, breaking the screen of your iPhone 6 may be the problem. Though Apple has offered a $109 service for replacing the broken iPhone 6 screen, it may not be the most convenient way for you because you have to make an appointment and drive a few hours to the apple store for just a few minutes work. Here we will walk you through a step by step easy repair guide of how to replace your iPhone 6 broken screen in three minutes.

Tools Needed:
Screwdriver
Plastic Spudger Tool
Tweezers
Case Opening Tool
Suction Cup Tool

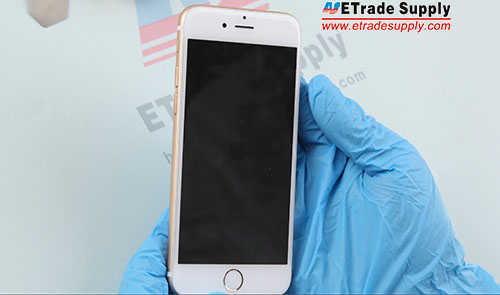

1. Power off the Apple iPhone 6.(Please make sure you’ve shut down your iPhone 6 before doing anything else in case of the causing the motherboard short circuit)
iPhone 6 Disassembly
1. Power off the Apple iPhone 6.
2. Undo the 2 charging port screws. (Notice: there’re lots of different screws inside, mark or separate them when disassembling to prevent confusion.)
2. Undo the 2 charging port screws.
3. Use the suction cup tool and case opening tool to separate the iPhone 6 LCD assembly from the rear housing assembly. (Notice: be careful not to damage the flex ribbons.)
3. Use the suction cup tool and case opening tool to separate the LCD assembly from rear housing assembly.
4. Undo the 5 screws that lock the metal cover above the LCD assembly flex ribbon connectors.
4. Undo the 5 screws that locking the metal cover above LCD and Digitizer flex ribbon connectors.
5. Carefully pry up the 3 connectors.
IMG_9771
6. Undo the 3 screws from the home button bracket.
7. Undo the 3 screws of home button bracket.
7. Carefully pry up the home button flex ribbon connector, gently poke the home button and take it out.
IMG_9776 8. Pry up the home button flex ribbon connector, gently poke the home button and take it out.
8. Undo the 2 screws that lock the metal cover above the earpiece speaker and front facing camera.
IMG_9779 9. Undo the 2 screws that locking the metal cover above ear speaker and front facing camera.
9. Remove the front facing camera and the earpiece speaker.
10. Remove the front facing camera and the ear speaker.
10. Undo the 6 screws that lock the LCD frame and LCD back plate.
11. Undo the 6 screws that locking LCD frame and LCD back plate.
11. Use tweezers to carefully pick up the flex ribbon connector and remove the LCD back plate.
12. Use tweezers to pick up the sticker and remove the LCD back plate.
12. Separated the LCD assembly, metal plate and rear housing assembly.
13. Separated LCD assembly, metal plate and rear housing assembly.
13. Reassemble the metal plate and the new LCD assembly replacement, fasten the screws. Then assemble the home button.
IMG_9778
14. Replace the metal cover and lock it with the screws.
20140920_165033
15. Reassemble the earpiece speaker and cover the metal bracket, then fasten it with the screws.
20140920_165426
16. Connect the LCD screen assembly and the rear housing assembly.
20140920_165640
17. Replace the metal cover above the connectors.
20140923194450

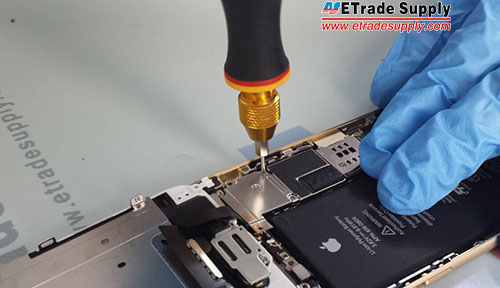

18. Lock the metal cover with 5 screws.
20140923194508
19. Assemble the LCD screen assembly and the rear housing assembly.
iphone6 reassembly

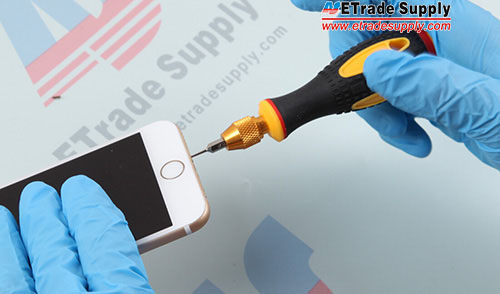

20. Fasten the 2 charging port screws. Congratulations you’ve completely replaced your iPhone 6 screen.
QQ截图20140923192631
